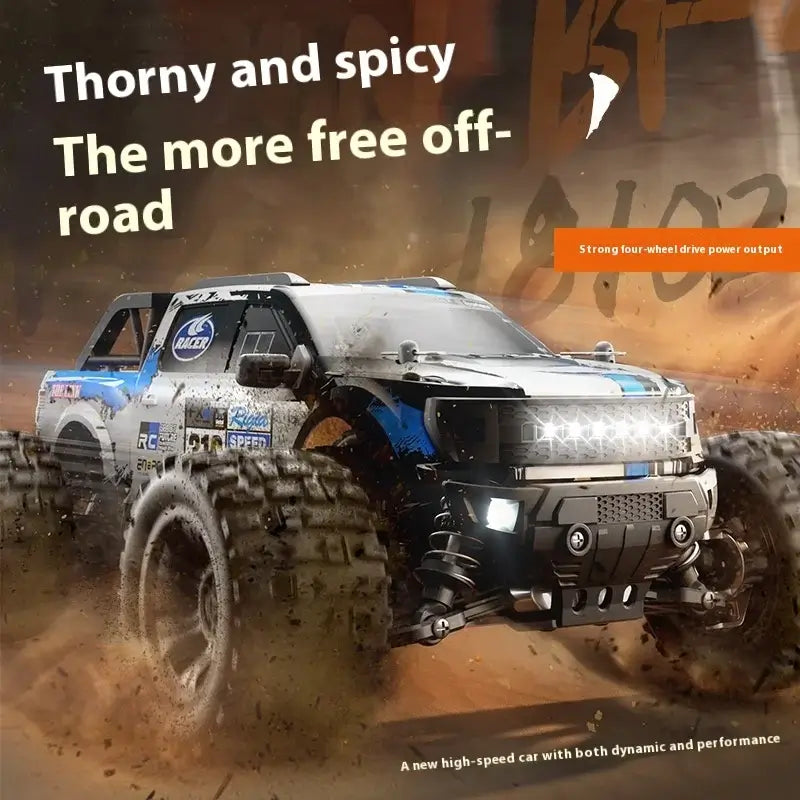

Experience high-performance off-road driving with this 1/18 scale 4x4 RC truck featuring full ratio endless speed change capability. Designed for expert enthusiasts, it delivers precise control and impressive speeds up to 40 KM/H. Its robust build and advanced drivetrain ensure durability and superior traction on diverse terrains, making it ideal for challenging off-road adventures.

SPECIFICATIONS

Off-Road Trucks 40KMH

Brand Name: MN MODEL

Control Channels: 4 channels

Controller Mode: MODE1,MODE2

Design: Dirt Bike

Dimensions: 25*19*11cm

Features: REMOTE CONTROL

Flight Time: 35min

Hign-concerned Chemical: None

Is Electric: Lithium Battery

Material: Metal,Plastic

Origin: Mainland China

Package Includes: Original Box,Remote Controller,USB Cable,Batteries,Operating Instructions

Recommend Age: 14+y

Remote Control: Yes

Remote Distance: 100m

Scale: 1:18

State of Assembly: Ready-to-Go

Tire Track: 155mm

Type: Car

Wheelbase: 165mm

Product speed (km/h) 40

Product Battery: 7.4V 1500mAH lithium-ion battery (T plug)

Remote control battery: 3* "AA" (to be purchased separately)

Charging :USB cable charger

Remote control time (minutes):35-40 minutes (continuous running at full speed)

Charging time (min):180-210 (USB balance charge)

Remote control distance (m):≥80

Steering gear :5 lines,17g

Headlight configuration :LED front light white light, central white light

Differential structure: Metal differential (planetary gear)

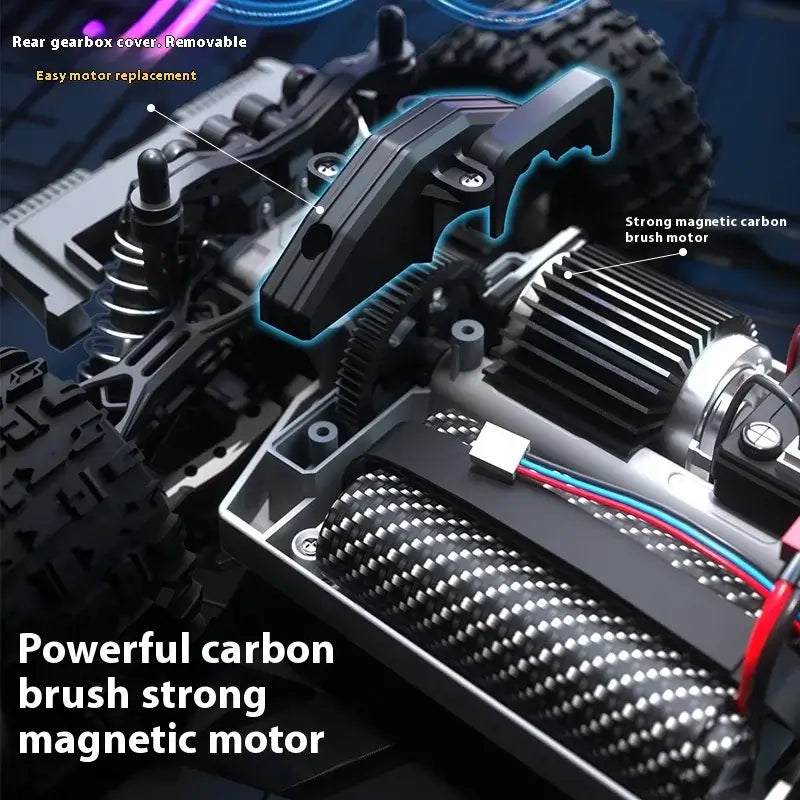

Motor :RC380 high speed carbon brush strong magnetic (magnetic protection + heat sink)

Electric modulation/reception :25A 2S integrated control (anti-splash)

Remote control category: Full proportional synchronous control system (gun control)

Product name: Full scale remote control four-wheel drive Bigfoot vehicle (Raptor) 1:18

Product frequency :2.4GHz(support multi-vehicle competition)

Product color: Floral blue/red

Product material: Hardware/electronic/plastic

Wheel wheelbase parameter (mm): Wheelbase: 165mm Wheelbase: 155mm Wheel diameter :67mm

Product specifications (cm):25*19*11

1: Charging protection: constant current and constant voltage balanced charging, the protection function of the battery overcharge and overcurrent.

2: motor anti-jamming protection: overload work, the motor stops working.

3: high temperature protection: When the operating temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to a safe value after the resumption of work.

4: The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent the battery overdischarge and damage.

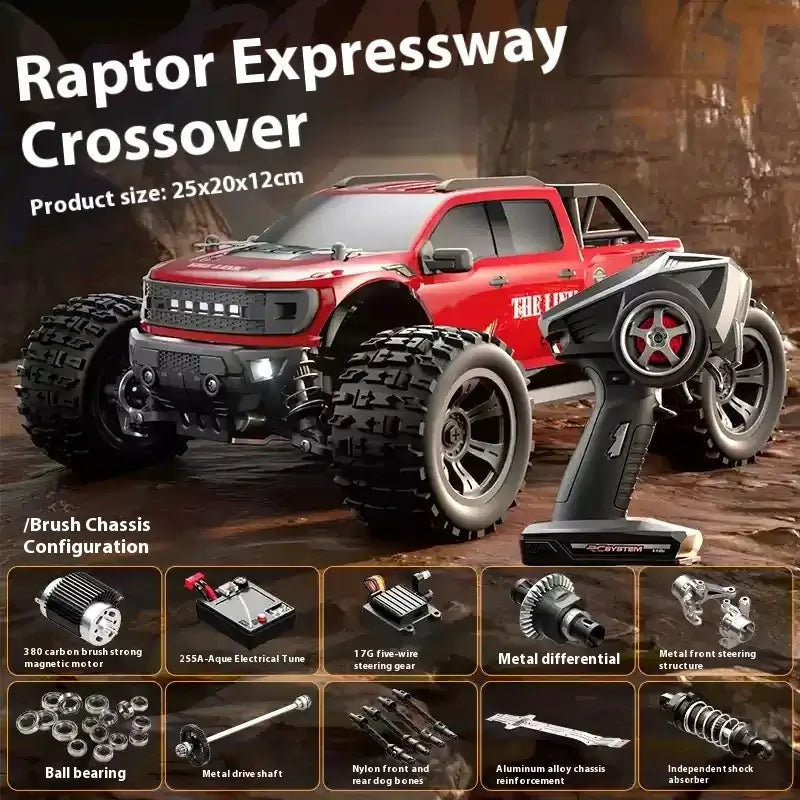

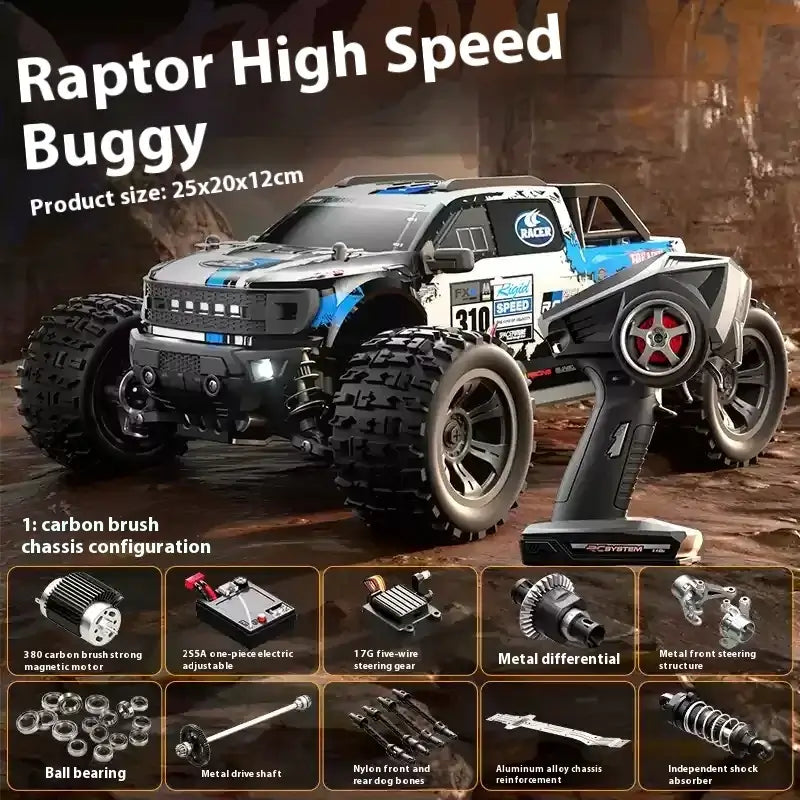

Product configuration

1. Complete vehicle

2. Remote control

3. Instructions in Chinese and English

4, lithium battery

5, USB charger

6, shock adjustment buckle

7. Metal latch

8. Phillips screwdriver

Product parameter

1, the use of simulation structure design, with real car control feeling, to achieve full scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn;

2, applicable site: flat land, sand, mud, grass.

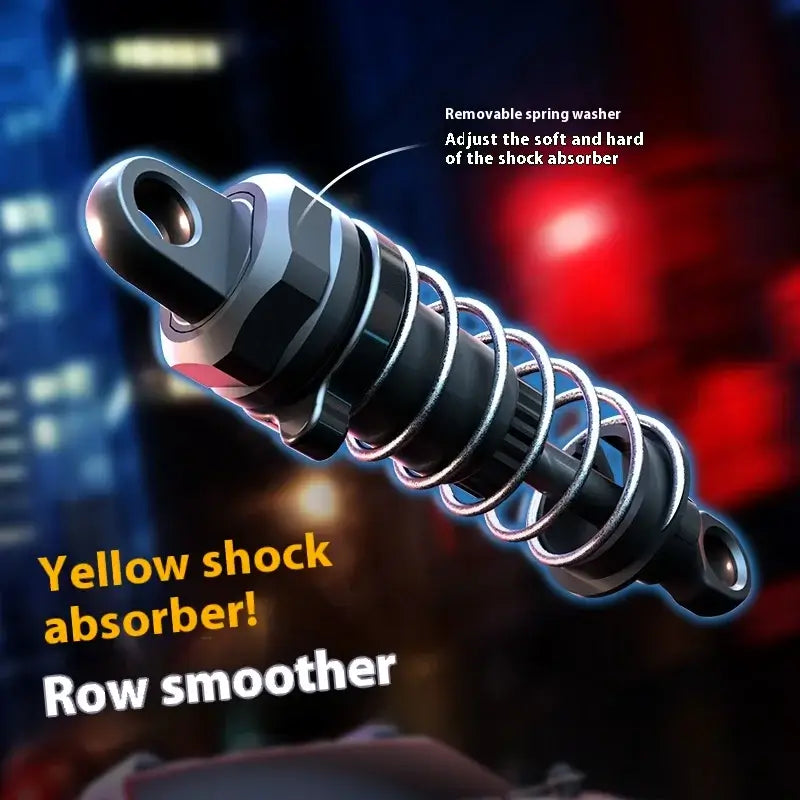

3, four-wheel drive: front and rear vertical spring shock absorption, double fork arm independent suspension system;

4, remote control system: 2.4G full proportion synchronous remote control system. Full throttle/steering;

5, electrical regulation: 2.4G anti-splash four-way 30A integrated electrical regulation/reception;

6, drive shaft structure: front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;

7, steering gear parameters: five-line 17G steering gear;

8, battery parameters: 7.4V, 18650-1500mAh Li-ion battery (T plug);

9, ball bearings: the whole car uses 15 ball bearings;

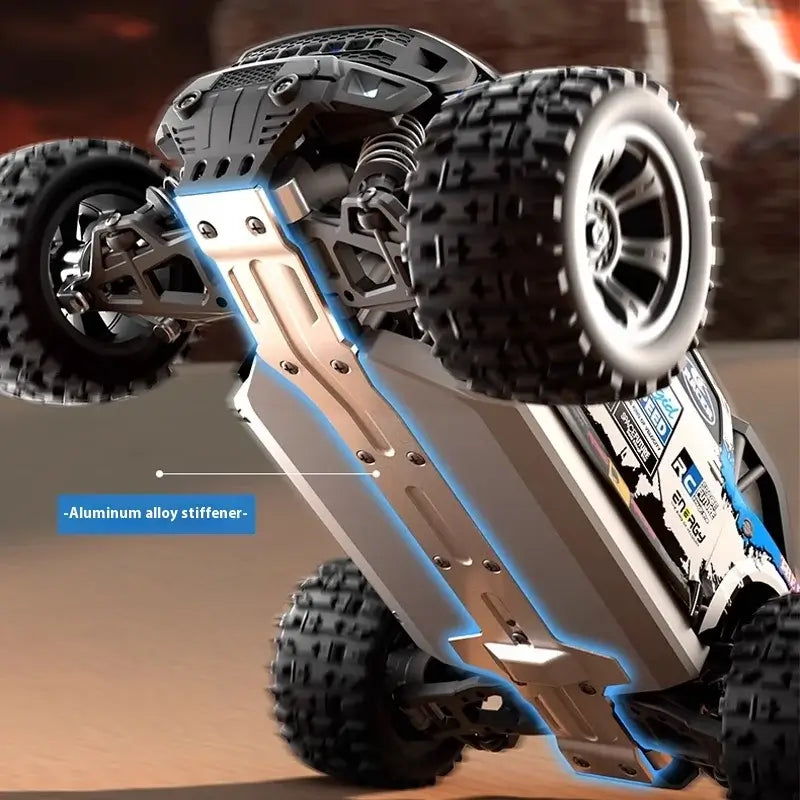

10, metal parts: metal bottom reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm code, metal drive shaft;

11, car shell: car shell with high toughness explosion-proof PVC car shell; The shell is equipped with anti-loss silicone clasp;

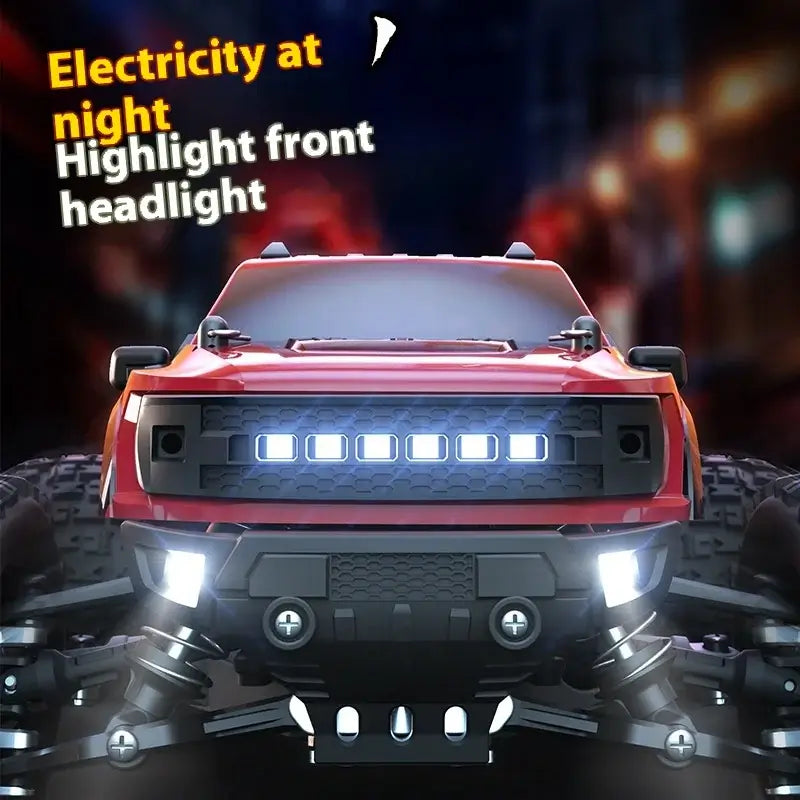

12, lighting: equipped with LED headlights; (Three gear mode: steady on, slow blinking, fast blinking);

13, other equipment: equipped with head-up wheel;

14, other equipment: simulation big foot tire, strong grip
